CONTAINERS & SPECIFICATIONS

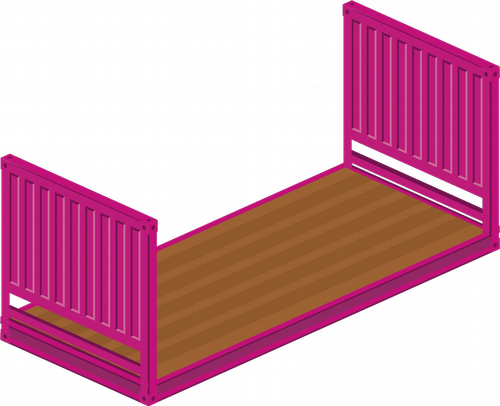

FLAT RACK CONTAINER*

Flat Rack containers are characterised by a base floor and 2 side walls which are affixed to the front and rear of the containers. They are attached with numerous lashing rings, thus making it easy to secure special cargoes.

20 Feet – Flat Rack

Specifications for 8’6”/ 34,000kg

Inside Measurement	Length (cm)	556 (between corner posts)
	Width (cm)	219 (between side rails)
	Height (cm)	221
Load Capacity	(m3)	28.4
Container Weight	(kg)	3,050
Max. Load Weight	(kg)	30,950

40 Feet – Flat Rack

Specifications for 8’6”/ 45,000kg

Inside Measurement	Length (cm)	1,165 (between corner posts)
	Width (cm)	220 (between side rails)
	Height (cm)	195
Load Capacity	(m3)	53.2
Container Weight	(kg)	6,200
Max. Load Weight	(kg)	38,800

40/HC – Flat Rack

Specifications for 9’6”/ 58,600kg

Inside Measurement	Length (cm)	1,165 (between corner posts)
	Width (cm)	237 (between side rails)
	Height (cm)	226
Load Capacity	(m3)	64.3
Container Weight	(kg)	6,100
Max. Load Weight	(kg)	52,500

OPEN TOP CONTAINER*

Open Top containers are characterised by their removable canvas or tarpaulins instead of a solid roof. They are perfect for special cargoes that are easily loaded from the top.

20 Feet – Open Top

Specifications for 8’6”/ 30,480kg

Inside Measurement	Length (cm)	589
	Width (cm)	234
	Height (cm)	234
Door Opening	Width (cm)	233
	Height (cm)	224
Roof Header	Width (cm)	186
Roof Opening	Length (cm)	576
	Width (cm)	222
Load Capacity	(m3)	32.4
Container Weight	(kg)	2,380
Max. Load Weight	(kg)	28,100

40 Feet – Open Top

Specifications for 8’6”/ 30,480kg

Inside Measurement	Length (cm)	1,202
	Width (cm)	234
	Height (cm)	234
Door Opening	Width (cm)	233
	Height (cm)	224
Roof Header	Width (cm)	185
Roof Opening	Length (cm)	1,189
	Width (cm)	218
Load Capacity	(m3)	66.2
Container Weight	(kg)	3,880
Max. Load Weight	(kg)	26,600

40/HC – Open Top

Specifications for 9’6”/ 32,500kg

Inside Measurement	Length (cm)	1,203
	Width (cm)	235
	Height (cm)	265
Door Opening	Width (cm)	234
	Height (cm)	258
Roof Header	Width (cm)	194
Roof Opening	Length (cm)	1,180
	Width (cm)	219
Load Capacity	(m3)	75.1
Container Weight	(kg)	4,060
Max. Load Weight	(kg)	28,440

* Indicated specifications for reference only. Actual unit may differs.
